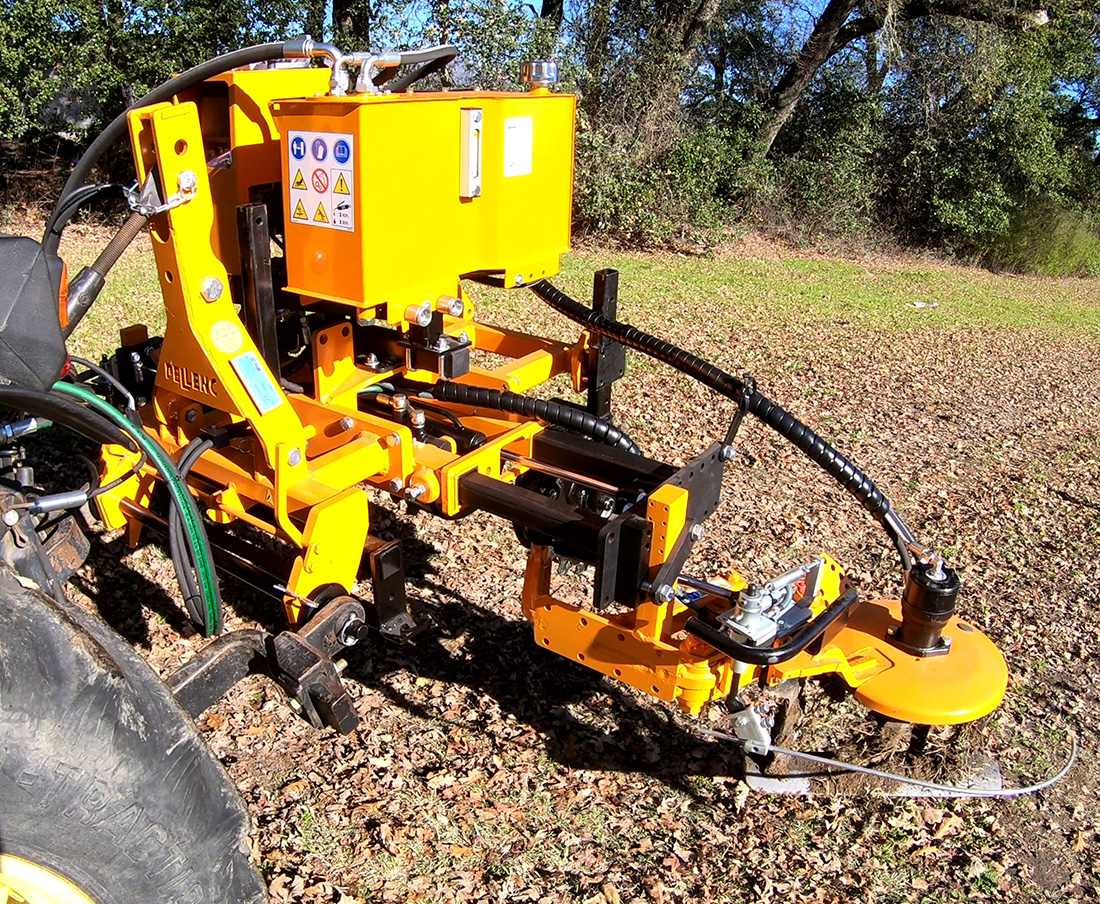

Take a few moments to watch an in-depth introduction of the newest features of the Under-Vine Cultivator. It features hydraulic tilting head, floating frame, double-pump and so much more! Watch the introduction and setup tips or skip towards the end of the video to see it in action.

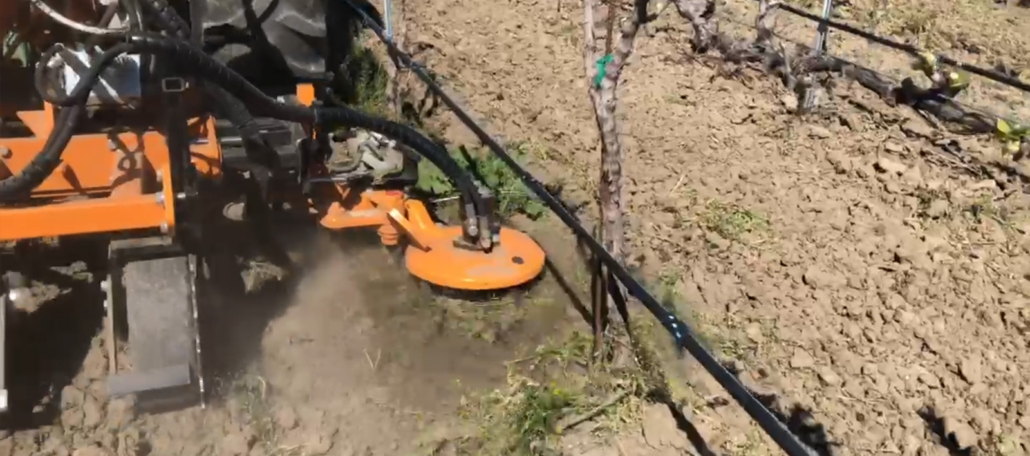

Equipped with electro hydraulic weeders and a self-contained hydraulic power pack, it is effective in many types of soil conditions. The unit comes with a control panel for installation in the tractor cab. This weeder is designed to work around young vines, even with a very small size (from 1/2in diameter).

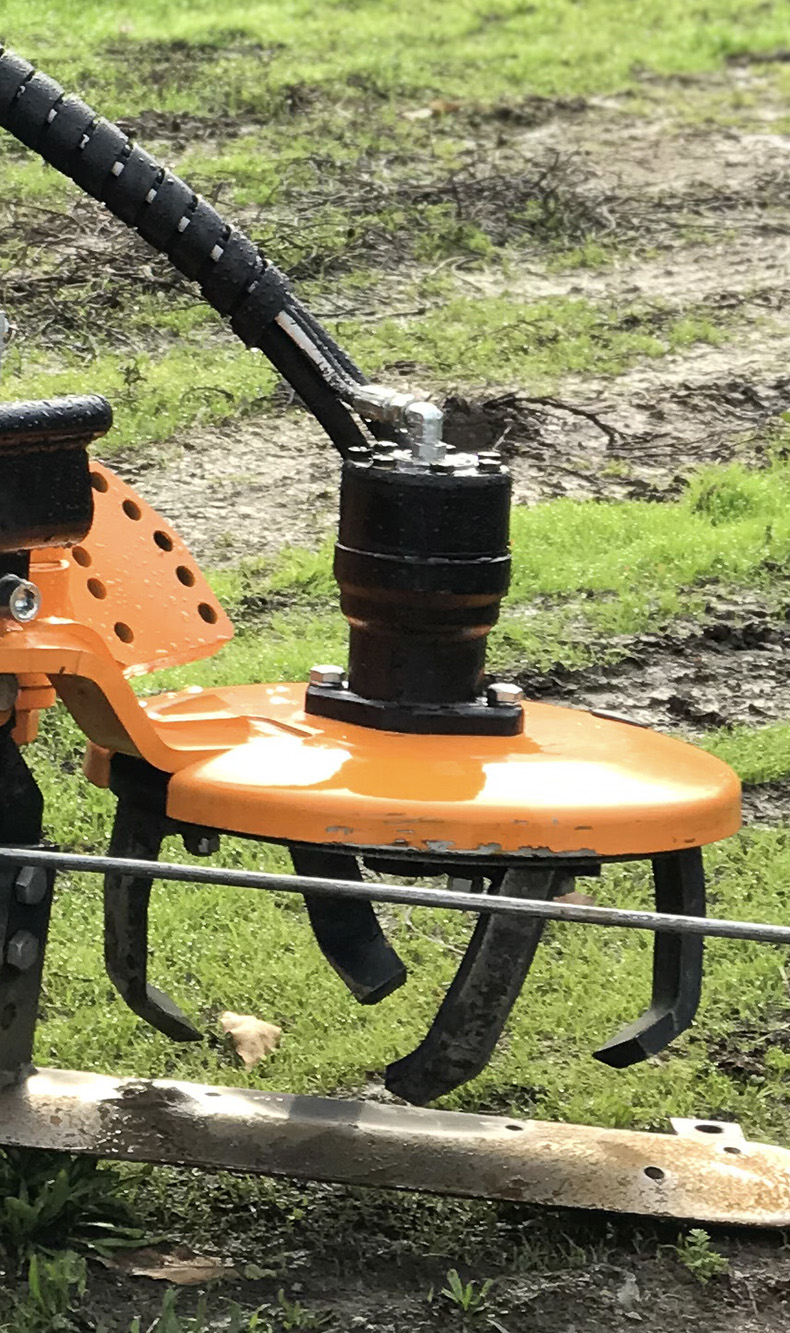

Weeder blades are controlled by an adjustable sensing rod. The system combines a parallelogram design with radial movement that enables high accuracy. Working 1/2 rows per pass at speeds up to 5 mph provides good efficiency.

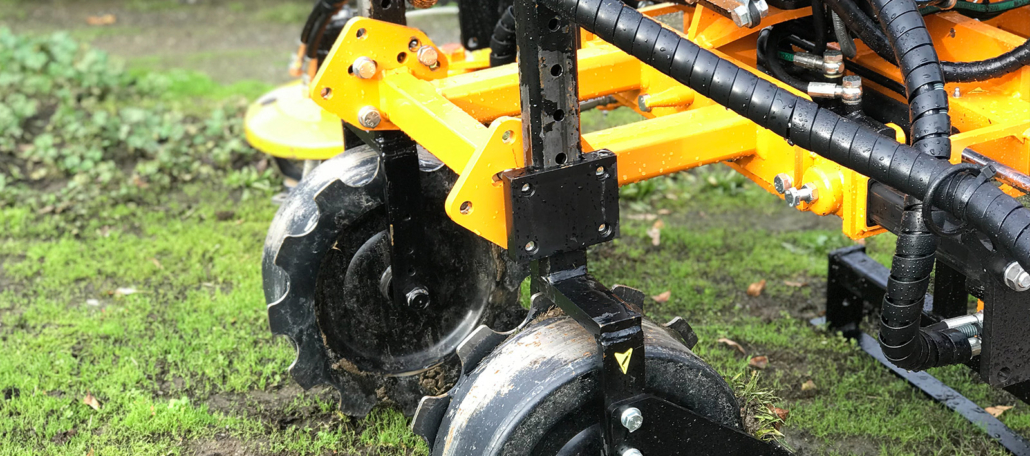

Adjustable height
Adjustable height metal wheels allow for depth control assistance

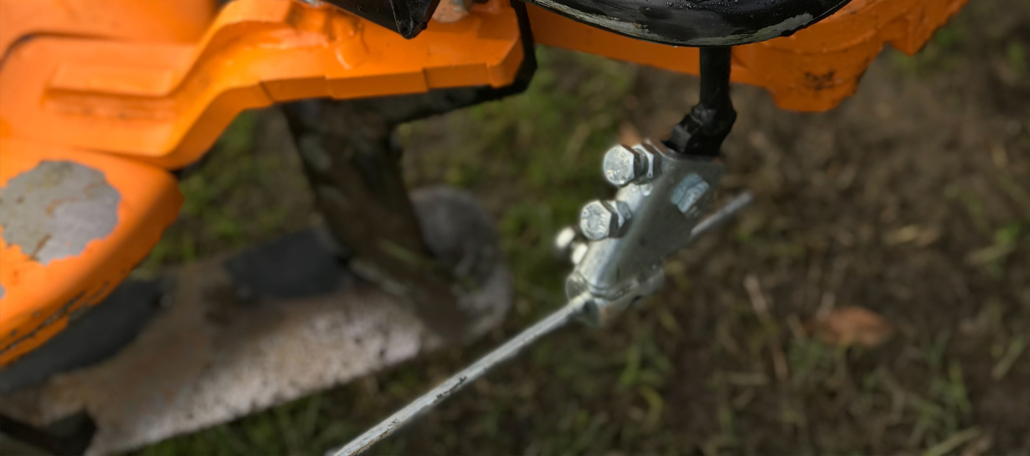

Vine/Post Sensor
Constructed of high-tensile strength steel for maximum durability

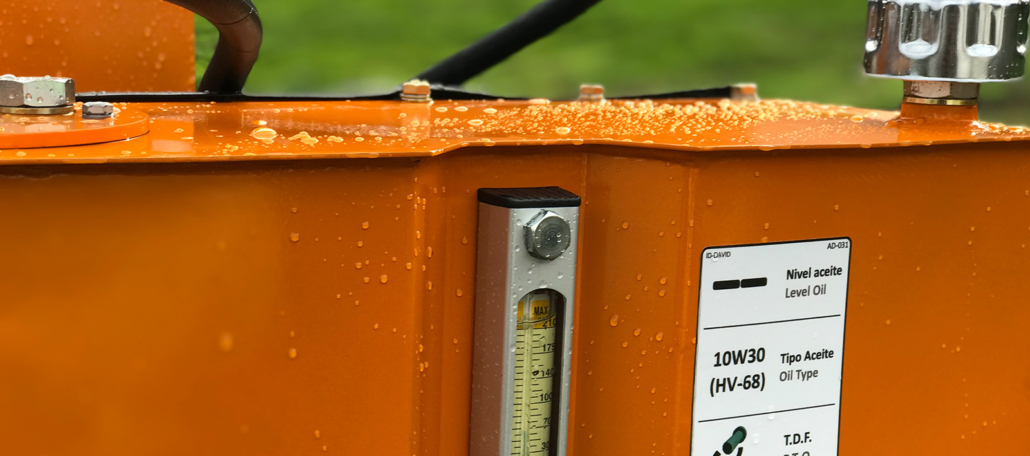

Independent Hydraulic Power
Powered by the PTO, the extra flow rate is created by the unit
Row spacing
Hydraulic row spacing adjustment utilizes the tractor’s hydraulic system
